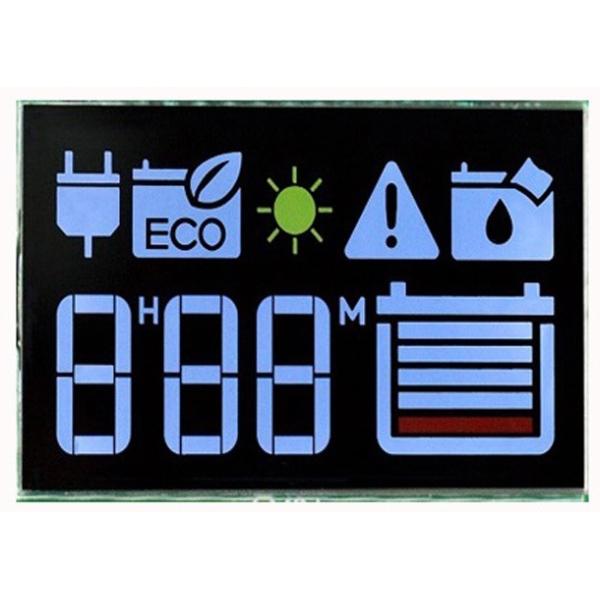

Custom Shape VA LCD Display Color Segmented LCD Display 4 Digit Zebra Screen
A clock with an LCD (Liquid Crystal Display) screen is a common type of digital clock that uses an LCD panel to display the time and other information, such as the date, temperature, or alarm status.
Variants:
- Analog-Look LCD Clocks: Simulate an analog clock face while still being digital.
- Smart Clocks: Integrated with smart home systems (e.g., Alexa or Google Assistant) and may feature touchscreens for interaction.
- Weather and Atomic Clocks: Include advanced features like syncing with atomic time servers for precise timekeeping.
Detailed Parameters:
| Model Description |
LCD Color Segmented Display |
LCD type |
Segmented Display |
| Outline Dimension |
79.00(W)* 60.34(H)* 2.90(T) mm |
Display mode |
VA, Negative |
| LCD viewing area |
76.00(W)* 55.34(H) mm |
Polarizer type |
Transmissive |
| Driver IC |
/ |
LED backlight |
White color |
| Drive method |
1/8 Duty, 1/4 Bias |
Working voltage |
4.0V |
| Viewing angle |
12 O'clock |
Connection Way |
Zebra, 38 numbers |
| Operate temperature |
0℃~+50℃ |
Storage temperature |
-10~+60℃ |
Packaging & Shipping:
Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Packaging method depends on product size and customer requirements, which may vary by country.
Shipping: Express options include DHL, Fedex, EMS, UPS, air shipping, and sea shipping. Any preferred shipping method available.
Payment Method:
FAQ:
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
Answer: No problem. Please send us your specification/drawing. If unavailable, we can recommend suitable standard products or customize based on your requirements.
2. This LCD is what we want but too large. Do you have smaller sizes with modified display content?
Answer: For segment type LCD modules requiring size or content changes, we need to create new tooling for a custom LCD glass module.
3. This LCD display is HTN type, but I want STN type. Can you make it?
Answer: Yes, we can modify the display type according to your request.
4. I want to customize a new LCD module. Can you do it?
Answer: Yes. Please provide your drawing or specify outline size, display information (glass thickness, polarizer, display type, connector mode, temperature ranges, voltage, viewing direction, drive condition).
5. What is the lead time for tooling?
Answer: Typically 15-25 days after drawing confirmation and tooling payment. Exact timeline will be confirmed upon drawing approval.
6. Can you send samples for checking?
Answer: Yes, sample orders are available.
7. What is the lead time?
Answer: Standard products in stock ship within 1 day after payment. Special mass production orders take 15-30 days, with possible earlier completion updates.
Our Services:
- Free repair within one year after shipment
- Replacement within 30 days for product-related issues
- Custom logo and model number printing available
- Discounted shipping rates through established partnerships
- Professional technical support and responsive after-sales service
- All products inspected and tested by engineers before shipment
- 24-hour response time for customer inquiries
- Custom LCD display solutions based on your specifications
Product Application Fields:
- Audio products
- Medical equipment
- Industrial products (water meters, electronic meters, equipment)
- Automobiles
- Sports equipment
- Watches
- Household appliances (air conditioners, washing machines, refrigerators, disinfection cabinets, electronic scales, etc.)
