LED Backlit IPS TFT LCD Display 7 Inch TN Transmissive 800x480 Pixels
Key Features
- Resolution: 800x480 pixels (15:9 aspect ratio) provides sufficient clarity for most non-graphic-intensive tasks
- Pixel Density: Approximately 133 PPI (Pixels Per Inch) for adequate image quality
- Display Type: TFT (Thin-Film Transistor) technology offers superior color reproduction and contrast with fast refresh rates
- Backlight: Energy-efficient LED backlighting suitable for indoor and some outdoor applications
- Viewing Angles: Moderate viewing angles suitable for most front-facing applications
Technical Specifications
| No. |
Item |
Specifications |
| 1 |
Product Name |
7.0 Inch TFT LCD Display |
| 2 |
Display Mode |
TN, Transmissive |
| 3 |
Viewing Angle |
6 O'clock |
| 4 |
Pixel arrangement |
RGB Vertical stripe |
| 5 |
Resolution |
800 RGB(H) x 480(V) Dots |
| 6 |
Operating Temperature |
-20~+70℃ |
| 7 |
Storage Temperature |
-30~+80℃ |
| 8 |
FPC Connector |
50PIN, socket type |
| 9 |
Input Voltage |
3.3V |
| 10 |
Backlight |
3*6 chips white LED |
| 11 |
Interface |
Parallel RGB 24-bit |
| 12 |
Outline Dimension |
165(W) ×100(H) ×3.5(D) mm |
| 13 |
Active Area |
153.84(W) × 85.63(H) mm |
Packaging & Shipping
Packaging: Carton boxes, cupboard, EPE, blister tray. Packaging method depends on product size and customer requirements.
Shipping: Available via DHL, FedEx, EMS, UPS, air shipping, or sea shipping according to customer preference.
Frequently Asked Questions
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
Answer: Please send us your specification/drawing. If unavailable, we can recommend suitable standard products or customize based on your requirements.
2. This LCD is just what we want, but it is big size, do you have any smaller size?
Answer: For segment type LCD modules requiring size or content modifications, we can create new tooling for customized solutions.
3. This LCD display is HTN type, but I want STN type, can you make?
Answer: Yes, we can modify the display type according to your specifications.
4. I want to customize a new LCD module. Can you do?
Answer: We specialize in custom LCD solutions. Please provide your drawing or specifications including outline size, display information, and technical requirements.
5. What is the lead time for tooling?
Answer: Typically 15-25 days after drawing confirmation and tooling payment. Exact timeline will be confirmed upon order.
6. Can you send us samples for checking?
Answer: Yes, sample orders are available for standard products.
7. What is the Lead Time?
Answer: Standard products ship within 1 day if in stock. Custom production takes 15-30 days, with updates provided if completed earlier.
Our Services
- Free repair within one year after shipment
- Replacement within 30 days for defective products
- Custom logo printing and model number labeling
- Competitive shipping rates through established partnerships
- Professional technical support and after-sales service
- Rigorous quality control and testing before shipment
- 24-hour response time for customer inquiries
- Custom LCD display solutions based on your specifications

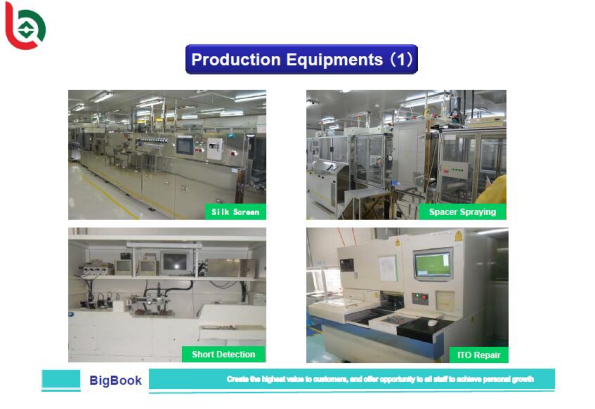

Production Capabilities
- Clean Room class 10k@0.8um, Pressure 0.8kgf
- Antistatic floor, resistance: 1x10 ohm to 1x10 ohm
- 4 COG production lines
- 2 Backlight production lines
- Monthly capacity of 1 million units
Quality Assurance: ISO9001:2008 certified with one-year guarantee against manufacturing defects.
